SELF-BUNDED TRANSPORTABLE CUBE
GLOBAL ENGINEERING SOLUTIONS FUEL CUBE THAT IS SELF BUNDED AND TRANSPORTABLE WITH LOCKABLE CABINETS AND MULTIPLE OPTIONS FOR DRAWING FUEL
PUMPING OPTIONS
80 litres per minute solar pumping-off grid, 8mt auto nozzle
80 litres per minute mains power with a mechanical meter
80 litres per minute Fuel Management System
SELF-BUNDED TRANSPORTABLE CUBE
GLOBAL ENGINEERING SOLUTIONS FUEL CUBE THAT IS SELF BUNDED AND TRANSPORTABLE WITH LOCKABLE CABINETS AND MULTIPLE OPTIONS FOR DRAWING FUEL
PUMPING OPTIONS
80 litres per minute solar pumping-off grid, 8mt auto nozzle
80 litres per minute mains power with a mechanical meter
80 litres per minute Fuel Management System
STANDARD FEATURES

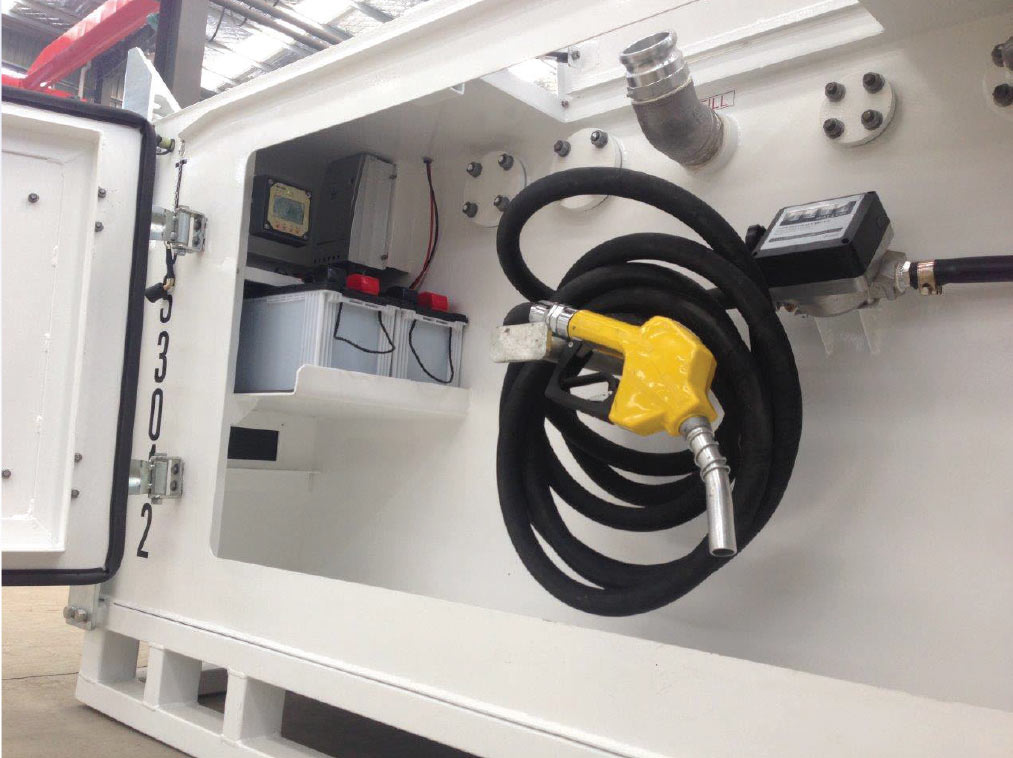

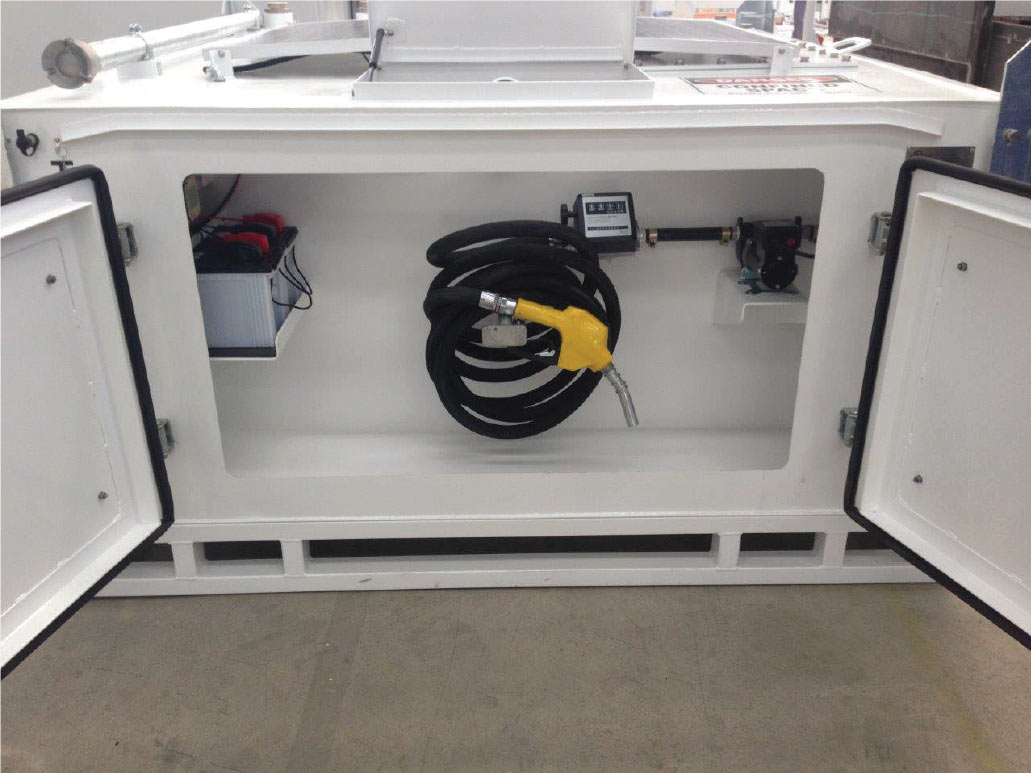

Self-bunded and transportable with lockable cabinet on the front
Setup for Diesel or Gasoline

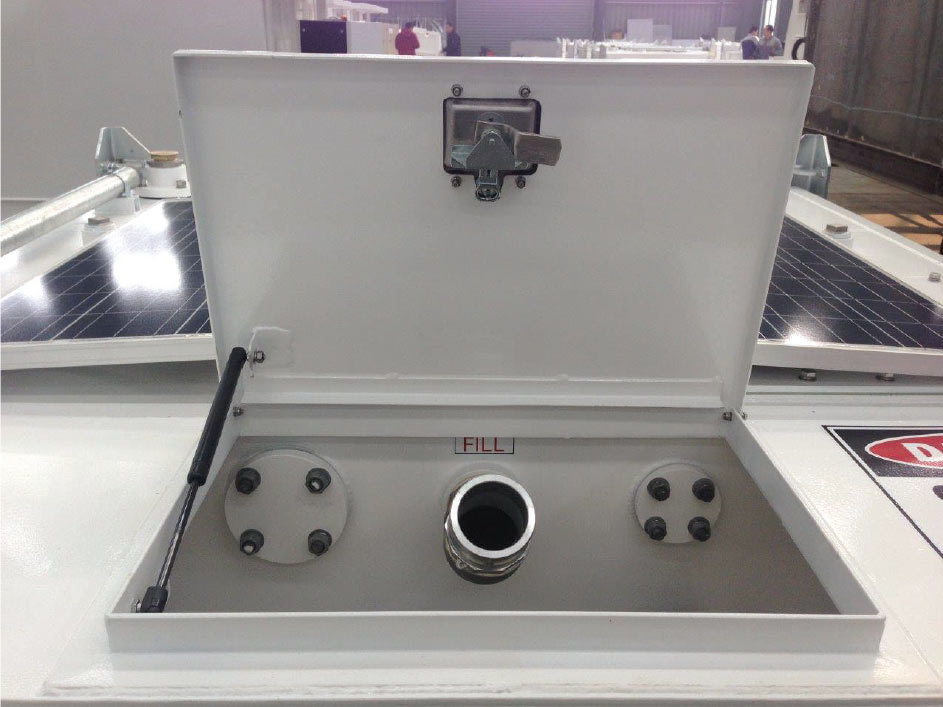

3 inches fill point with camloc and cap
Multiple options for drawing fuel from the tank
Genset lines and provisions
Forklift and crane lifting points
Hot dipped corner posts for protection
Stackable for transporting
Statutory decals fitted
| MODEL NUMBER | SAFE FILL LEVEL LITRES | LENGTH (mm) | WIDTH (mm) | HEIGHT (mm) | WEIGHT EMPTY | UNITS PER 40 FOOT CONTAINER |
| TOS-1 | 1000 | 1645 | 1130 | 1320 | 700 KG | 32 |
| TOS-2 | 2000 | 2200 | 1426 | 1320 | 1050KG | 16 |
| TOS-3 | 3000 | 2300 | 2209 | 1320 | 1400KG | 16 |
| TOS-4 | 4000 | 2745 | 2209 | 1320 | 1650KG | 8 |
| TOS-5 | 5000 | 3300 | 2209 | 1320 | 1850KG | 8 |
CERTIFICATIONS
- AS 1692-2006 Steel tanks for flammable and combustible liquids
- AS 1940-2004 Storage and handling of flammable and combustible liquids
- CAN/ULC-S601 Shop fabricated steel aboveground tanks for flammable and combustible liquids
- SANS 10131 Ed.1 (2004) Above-ground storage tanks for petroleum products
- UL 142 Aboveground flammable liquid tanks
Request a quote
Pick the right tank model
TOS-1
- SAFE FILL LEVEL: 1000
- LENGHT (mm): 1645
- WIDTH (mm): 1130
- HEIGHT (mm): 1320
- WEIGHT EMPTY: 700KG
TOS-2
- SAFE FILL LEVEL: 2000
- LENGHT (mm): 2200
- WIDTH (mm): 1426
- HEIGHT (mm): 1320
- WEIGHT EMPTY: 1050KG
TOS-3
- SAFE FILL LEVEL: 3000
- LENGHT (mm): 2300
- WIDTH (mm): 2209
- HEIGHT (mm): 1320
- WEIGHT EMPTY: 1400KG
TOS-4
- SAFE FILL LEVEL: 4000
- LENGHT (mm): 2745
- WIDTH (mm): 2209
- HEIGHT (mm): 1320
- WEIGHT EMPTY: 1650KG
TOS-5
- SAFE FILL LEVEL: 5000
- LENGHT (mm): 3300
- WIDTH (mm): 2209
- HEIGHT (mm): 1320
- WEIGHT EMPTY: 1850KG
CERTIFICATIONS
- AS 1692-2006 Steel tanks for flammable and combustible liquids
- AS 1940-2004 Storage and handling of flammable and combustible liquids
- CAN/ULC-S601 Shop fabricated steel aboveground tanks for flammable and combustible liquids
- SANS 10131 Ed.1 (2004) Above-ground storage tanks for petroleum products
- UL 142 Aboveground flammable liquid tanks
